pAmCyan1-N1 encodes a human codon-optimized variant of wild-type Anemonia majano cyan fluorescent protein, AmCyan1 (1). The AmCyan1 coding sequence contains a series of silent base-pair changes, which correspond to human codon-usage preferences, for optimal expression in mammalian cells (2). Additionally, an upstream sequence—located just 5' to the AmCyan1 start codon—has been converted to a Kozak consensus translation initiation site (3) to further increase the translation efficiency in eukaryotic cells. Two amino acid substitutions (Asn-34 to Ser; Lys-68 to Met) have been made to enhance the emission characteristics of AmCyan1 (excitation maximum = 458 nm; emission maximum = 489 nm).

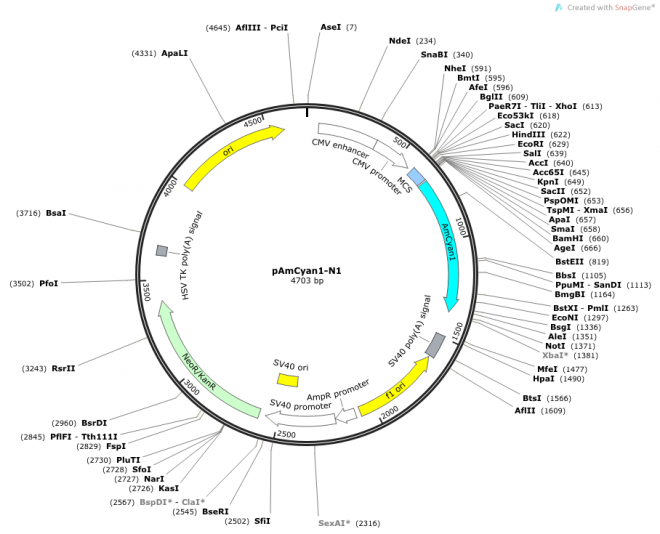

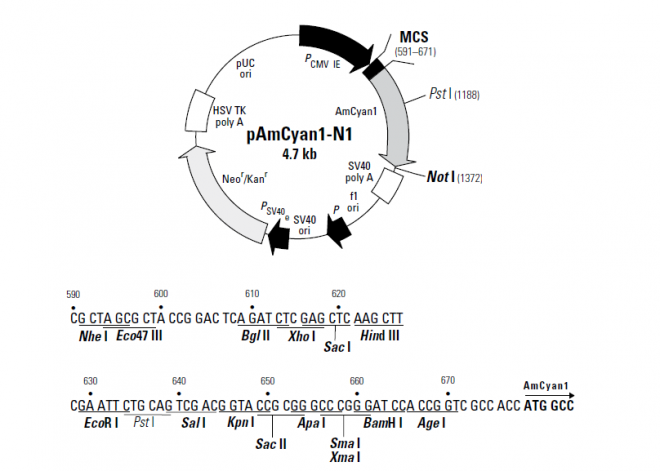

The multiple cloning site (MCS) in pAmCyan1-N1 is positioned between the immediate-early promoter of CMV (PCMV IE) and the AmCyan1 coding sequence. Thus, genes cloned into the MCS will be expressed as fusions to the N-terminus of AmCyan1 if they are in the same reading frame as AmCyan1 and there are no intervening stop codons. The SV40 polyadenylation signals (SV40 polyA) downstream of the AmCyan1 gene direct proper processing of the 3' end of AmCyan1 mRNA.

The vector backbone contains an SV40 origin (SV40 ori) for replication in mammalian cells that express the SV40 T antigen, a pUC origin of replication (pUC ori) for propagation in E. coli, and an f1 origin (f1 ori) for single-stranded DNA production. In addition, a neomycin-resistance cassette— consisting of the SV40 early promoter (PSV40e), the neomycin/kanamycin resistance gene of Tn5 (Neor/Kanr), and polyadenylation signals from the Herpes simplex virus thymidine kinase (HSV TK poly A) gene—allows stably transfected eukaryotic cells to be selected using G418 (4). A bacterial promoter (P) upstream of this cassette drives expression of the Neor/ Kanr gene in E. coli host cells, which can be selected with kanamycin.

載體應用

Fusions to the N terminus of AmCyan1 retain the fluorescent properties of the native protein allowing the localization of the fusion protein in vivo . The target gene should be cloned into pAmCyan1-N1 so that it is in frame with the AmCyan1 coding sequence, with no intervening, in-frame stop codons. The inserted gene should include the initiating ATG codon. The recombinant pAmCyan1-N1 vector can be transfected into mammalian cells using any standard transfection method. If required, stable transformants can be selected using G418 (available from Clontech; Cat. Nos. 631307 & 631308). We recommend selecting mammalian cell cultures in 500–1,300 μg/ml G418, depending on the cell line. Be sure to establish a kill curve for each cell line and each lot of G418 to determine the optimal selection concentration. Unmodified (i.e., non-recombinant) pAmCyan1-N1 can also be used simply to express AmCyan1 in a cell line of interest (e.g., as a transfection marker).

0001 TAGTTATTAA TAGTAATCAA TTACGGGGTC ATTAGTTCAT AGCCCATATA TGGAGTTCCG
0061 CGTTACATAA CTTACGGTAA ATGGCCCGCC TGGCTGACCG CCCAACGACC CCCGCCCATT
0121 GACGTCAATA ATGACGTATG TTCCCATAGT AACGCCAATA GGGACTTTCC ATTGACGTCA
0181 ATGGGTGGAG TATTTACGGT AAACTGCCCA CTTGGCAGTA CATCAAGTGT ATCATATGCC
0241 AAGTACGCCC CCTATTGACG TCAATGACGG TAAATGGCCC GCCTGGCATT ATGCCCAGTA
0301 CATGACCTTA TGGGACTTTC CTACTTGGCA GTACATCTAC GTATTAGTCA TCGCTATTAC
0361 CATGGTGATG CGGTTTTGGC AGTACATCAA TGGGCGTGGA TAGCGGTTTG ACTCACGGGG
0421 ATTTCCAAGT CTCCACCCCA TTGACGTCAA TGGGAGTTTG TTTTGGCACC AAAATCAACG
0481 GGACTTTCCA AAATGTCGTA ACAACTCCGC CCCATTGACG CAAATGGGCG GTAGGCGTGT
0541 ACGGTGGGAG GTCTATATAA GCAGAGCTGG TTTAGTGAAC CGTCAGATCC GCTAGCGCTA
0601 CCGGACTCAG ATCTCGAGCT CAAGCTTCGA ATTCTGCAGT CGACGGTACC GCGGGCCCGG
0661 GATCCACCGG TCGCCACCAT GGCCCTGTCC AACAAGTTCA TCGGCGACGA CATGAAGATG
0721 ACCTACCACA TGGACGGCTG CGTGAACGGC CACTACTTCA CCGTGAAGGG CGAGGGCAGC
0781 GGCAAGCCCT ACGAGGGCAC CCAGACCTCC ACCTTCAAGG TGACCATGGC CAACGGCGGC
0841 CCCCTGGCCT TCTCCTTCGA CATCCTGTCC ACCGTGTTCA TGTACGGCAA CCGCTGCTTC
0901 ACCGCCTACC CCACCAGCAT GCCCGACTAC TTCAAGCAGG CCTTCCCCGA CGGCATGTCC
0961 TACGAGAGAA CCTTCACCTA CGAGGACGGC GGCGTGGCCA CCGCCAGCTG GGAGATCAGC
1021 CTGAAGGGCA ACTGCTTCGA GCACAAGTCC ACCTTCCACG GCGTGAACTT CCCCGCCGAC
1081 GGCCCCGTGA TGGCCAAGAA GACCACCGGC TGGGACCCCT CCTTCGAGAA GATGACCGTG
1141 TGCGACGGCA TCTTGAAGGG CGACGTGACC GCCTTCCTGA TGCTGCAGGG CGGCGGCAAC
1201 TACAGATGCC AGTTCCACAC CTCCTACAAG ACCAAGAAGC CCGTGACCAT GCCCCCCAAC
1261 CACGTGGTGG AGCACCGCAT CGCCAGAACC GACCTGGACA AGGGCGGCAA CAGCGTGCAG
1321 CTGACCGAGC ACGCCGTGGC CCACATCACC TCCGTGGTGC CCTTCTGAAG CGGCCGCGAC
1381 TCTAGATCAT AATCAGCCAT ACCACATTTG TAGAGGTTTT ACTTGCTTTA AAAAACCTCC
1441 CACACCTCCC CCTGAACCTG AAACATAAAA TGAATGCAAT TGTTGTTGTT AACTTGTTTA
1501 TTGCAGCTTA TAATGGTTAC AAATAAAGCA ATAGCATCAC AAATTTCACA AATAAAGCAT
1561 TTTTTTCACT GCATTCTAGT TGTGGTTTGT CCAAACTCAT CAATGTATCT TAAGGCGTAA
1621 ATTGTAAGCG TTAATATTTT GTTAAAATTC GCGTTAAATT TTTGTTAAAT CAGCTCATTT
1681 TTTAACCAAT AGGCCGAAAT CGGCAAAATC CCTTATAAAT CAAAAGAATA GACCGAGATA
1741 GGGTTGAGTG TTGTTCCAGT TTGGAACAAG AGTCCACTAT TAAAGAACGT GGACTCCAAC
1801 GTCAAAGGGC GAAAAACCGT CTATCAGGGC GATGGCCCAC TACGTGAACC ATCACCCTAA
1861 TCAAGTTTTT TGGGGTCGAG GTGCCGTAAA GCACTAAATC GGAACCCTAA AGGGAGCCCC
1921 CGATTTAGAG CTTGACGGGG AAAGCCGGCG AACGTGGCGA GAAAGGAAGG GAAGAAAGCG
1981 AAAGGAGCGG GCGCTAGGGC GCTGGCAAGT GTAGCGGTCA CGCTGCGCGT AACCACCACA
2041 CCCGCCGCGC TTAATGCGCC GCTACAGGGC GCGTCAGGTG GCACTTTTCG GGGAAATGTG
2101 CGCGGAACCC CTATTTGTTT ATTTTTCTAA ATACATTCAA ATATGTATCC GCTCATGAGA
2161 CAATAACCCT GATAAATGCT TCAATAATAT TGAAAAAGGA AGAGTCCTGA GGCGGAAAGA
2221 ACCAGCTGTG GAATGTGTGT CAGTTAGGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA
2281 GAAGTATGCA AAGCATGCAT CTCAATTAGT CAGCAACCAG GTGTGGAAAG TCCCCAGGCT
2341 CCCCAGCAGG CAGAAGTATG CAAAGCATGC ATCTCAATTA GTCAGCAACC ATAGTCCCGC
2401 CCCTAACTCC GCCCATCCCG CCCCTAACTC CGCCCAGTTC CGCCCATTCT CCGCCCCATG
2461 GCTGACTAAT TTTTTTTATT TATGCAGAGG CCGAGGCCGC CTCGGCCTCT GAGCTATTCC
2521 AGAAGTAGTG AGGAGGCTTT TTTGGAGGCC TAGGCTTTTG CAAAGATCGA TCAAGAGACA
2581 GGATGAGGAT CGTTTCGCAT GATTGAACAA GATGGATTGC ACGCAGGTTC TCCGGCCGCT
2641 TGGGTGGAGA GGCTATTCGG CTATGACTGG GCACAACAGA CAATCGGCTG CTCTGATGCC
2701 GCCGTGTTCC GGCTGTCAGC GCAGGGGCGC CCGGTTCTTT TTGTCAAGAC CGACCTGTCC
2761 GGTGCCCTGA ATGAACTGCA AGACGAGGCA GCGCGGCTAT CGTGGCTGGC CACGACGGGC
2821 GTTCCTTGCG CAGCTGTGCT CGACGTTGTC ACTGAAGCGG GAAGGGACTG GCTGCTATTG
2881 GGCGAAGTGC CGGGGCAGGA TCTCCTGTCA TCTCACCTTG CTCCTGCCGA GAAAGTATCC
2941 ATCATGGCTG ATGCAATGCG GCGGCTGCAT ACGCTTGATC CGGCTACCTG CCCATTCGAC
3001 CACCAAGCGA AACATCGCAT CGAGCGAGCA CGTACTCGGA TGGAAGCCGG TCTTGTCGAT
3061 CAGGATGATC TGGACGAAGA GCATCAGGGG CTCGCGCCAG CCGAACTGTT CGCCAGGCTC
3121 AAGGCGAGCA TGCCCGACGG CGAGGATCTC GTCGTGACCC ATGGCGATGC CTGCTTGCCG
3181 AATATCATGG TGGAAAATGG CCGCTTTTCT GGATTCATCG ACTGTGGCCG GCTGGGTGTG
3241 GCGGACCGCT ATCAGGACAT AGCGTTGGCT ACCCGTGATA TTGCTGAAGA GCTTGGCGGC
3301 GAATGGGCTG ACCGCTTCCT CGTGCTTTAC GGTATCGCCG CTCCCGATTC GCAGCGCATC
3361 GCCTTCTATC GCCTTCTTGA CGAGTTCTTC TGAGCGGGAC TCTGGGGTTC GAAATGACCG
3421 ACCAAGCGAC GCCCAACCTG CCATCACGAG ATTTCGATTC CACCGCCGCC TTCTATGAAA
3481 GGTTGGGCTT CGGAATCGTT TTCCGGGACG CCGGCTGGAT GATCCTCCAG CGCGGGGATC
3541 TCATGCTGGA GTTCTTCGCC CACCCTAGGG GGAGGCTAAC TGAAACACGG AAGGAGACAA
3601 TACCGGAAGG AACCCGCGCT ATGACGGCAA TAAAAAGACA GAATAAAACG CACGGTGTTG
3661 GGTCGTTTGT TCATAAACGC GGGGTTCGGT CCCAGGGCTG GCACTCTGTC GATACCCCAC
3721 CGAGACCCCA TTGGGGCCAA TACGCCCGCG TTTCTTCCTT TTCCCCACCC CACCCCCCAA
3781 GTTCGGGTGA AGGCCCAGGG CTCGCAGCCA ACGTCGGGGC GGCAGGCCCT GCCATAGCCT
3841 CAGGTTACTC ATATATACTT TAGATTGATT TAAAACTTCA TTTTTAATTT AAAAGGATCT
3901 AGGTGAAGAT CCTTTTTGAT AATCTCATGA CCAAAATCCC TTAACGTGAG TTTTCGTTCC
3961 ACTGAGCGTC AGACCCCGTA GAAAAGATCA AAGGATCTTC TTGAGATCCT TTTTTTCTGC
4021 GCGTAATCTG CTGCTTGCAA ACAAAAAAAC CACCGCTACC AGCGGTGGTT TGTTTGCCGG
4081 ATCAAGAGCT ACCAACTCTT TTTCCGAAGG TAACTGGCTT CAGCAGAGCG CAGATACCAA
4141 ATACTGTTCT TCTAGTGTAG CCGTAGTTAG GCCACCACTT CAAGAACTCT GTAGCACCGC
4201 CTACATACCT CGCTCTGCTA ATCCTGTTAC CAGTGGCTGC TGCCAGTGGC GATAAGTCGT
4261 GTCTTACCGG GTTGGACTCA AGACGATAGT TACCGGATAA GGCGCAGCGG TCGGGCTGAA
4321 CGGGGGGTTC GTGCACACAG CCCAGCTTGG AGCGAACGAC CTACACCGAA CTGAGATACC
4381 TACAGCGTGA GCTATGAGAA AGCGCCACGC TTCCCGAAGG GAGAAAGGCG GACAGGTATC
4441 CGGTAAGCGG CAGGGTCGGA ACAGGAGAGC GCACGAGGGA GCTTCCAGGG GGAAACGCCT
4501 GGTATCTTTA TAGTCCTGTC GGGTTTCGCC ACCTCTGACT TGAGCGTCGA TTTTTGTGAT
4561 GCTCGTCAGG GGGGCGGAGC CTATGGAAAA ACGCCAGCAA CGCGGCCTTT TTACGGTTCC
4621 TGGCCTTTTG CTGGCCTTTT GCTCACATGT TCTTTCCTGC GTTATCCCCT GATTCTGTGG
4681 ATAACCGTAT TACCGCCATG CAT
