443143416pLVX-EF1α-IRES-ZsGreen1
- 產品貨號GS-2014
- 銷售價格￥ 1496
- 包裝規格2μg質粒或0.5ml甘油菌
- 表達類型高
- 載體抗性Ampicillin (氨芐青霉素)
- 載體大小8889 bp
- 啟動子EF1α/ EF1a
- 5'測序引物EF1a Forward: TCAAGCCTCAGACAGTGGTTC
- 備注說明載體能夠表達ZsGreen1熒光蛋白

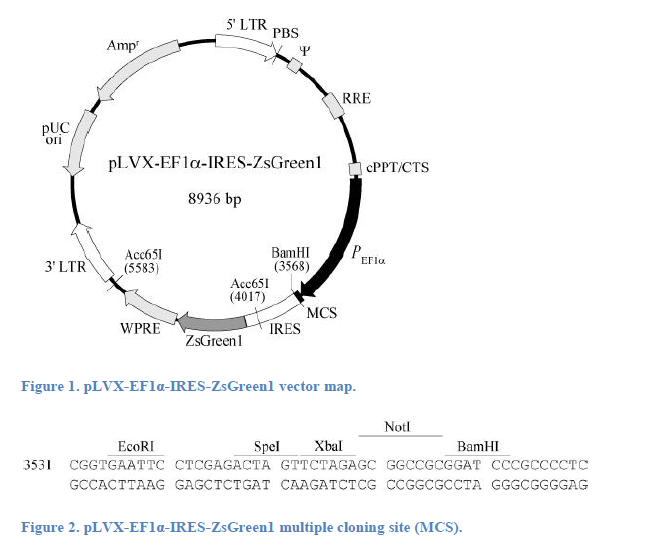

pLVX-EF1α-IRES-ZsGreen1 is an HIV-1-based, lentiviral expression vector designed to simultaneously and constitutively express a protein of interest and the green fluorescent protein ZsGreen1 from a bicistronic transcript in mammalian cells. ZsGreen1 is a human-codon-optimized variant of the reef coral Zoanthus sp. green fluorescent protein (ZsGreen) that has been engineered for brighter fluorescence (1–3). The excitation and emission maxima of native ZsGreen1 are 493 nm and 505 nm, respectively.
Simultaneous expression of a protein of interest and ZsGreen1 is made possible by the presence of an encephalomyo- carditis virus internal ribosome entry site (IRES; 4, 5) positioned between the multiple cloning site (MCS) and the ZsGreen1 gene. The IRES allows a protein of interest and ZsGreen1 to be translated from a single bicistronic mRNA. Stable, constitutive expression of the bicistronic transcript is driven by the EF1α promoter (PEF1α), which continues to be constitutively active even after vector integration into the host cell genome (6).
pLVX-EF1α-IRES-ZsGreen1 contains all of the viral processing elements necessary for the production of replication-incompetent lentivirus, as well as elements to improve viral titer, transgene expression, and overall vector function. The woodchuck hepatitis virus posttranscriptional regulatory element (WPRE) promotes RNA processing events and enhances nuclear export of viral RNA (7), leading to increased viral titers from packaging cells. In addition, the vector includes a Rev-response element (RRE), which further increases viral titers by enhancing the transport of unspliced viral RNA out of the nucleus (9). Finally, pLVX-EF1α-IRES-ZsGreen1 also contains a central polypurine tract/central termination sequence element (cPPT/CTS). During target cell infection, this element creates a central DNA flap that increases nuclear import of the viral genome, resulting in improved vector integration and more efficient transduction (9). The vector also contains a pUC origin of replication and an E. coli ampicillin resistance gene (Ampr) for propagation and selection in bacteria.
0001 TGGAAGGGCT AATTCACTCC CAAAGAAGAC AAGATATCCT TGATCTGTGG ATCTACCACA
0061 CACAAGGCTA CTTCCCTGAT TAGCAGAACT ACACACCAGG GCCAGGGGTC AGATATCCAC
0121 TGACCTTTGG ATGGTGCTAC AAGCTAGTAC CAGTTGAGCC AGATAAGGTA GAAGAGGCCA
0181 ATAAAGGAGA GAACACCAGC TTGTTACACC CTGTGAGCCT GCATGGGATG GATGACCCGG
0241 AGAGAGAAGT GTTAGAGTGG AGGTTTGACA GCCGCCTAGC ATTTCATCAC GTGGCCCGAG
0301 AGCTGCATCC GGAGTACTTC AAGAACTGCT GATATCGAGC TTGCTACAAG GGACTTTCCG
0361 CTGGGGACTT TCCAGGGAGG CGTGGCCTGG GCGGGACTGG GGAGTGGCGA GCCCTCAGAT
0421 CCTGCATATA AGCAGCTGCT TTTTGCCTGT ACTGGGTCTC TCTGGTTAGA CCAGATCTGA
0481 GCCTGGGAGC TCTCTGGCTA ACTAGGGAAC CCACTGCTTA AGCCTCAATA AAGCTTGCCT
0541 TGAGTGCTTC AAGTAGTGTG TGCCCGTCTG TTGTGTGACT CTGGTAACTA GAGATCCCTC
0601 AGACCCTTTT AGTCAGTGTG GAAAATCTCT AGCAGTGGCG CCCGAACAGG GACTTGAAAG
0661 CGAAAGGGAA ACCAGAGGAG CTCTCTCGAC GCAGGACTCG GCTTGCTGAA GCGCGCACGG
0721 CAAGAGGCGA GGGGCGGCGA CTGGTGAGTA CGCCAAAAAT TTTGACTAGC GGAGGCTAGA
0781 AGGAGAGAGA TGGGTGCGAG AGCGTCAGTA TTAAGCGGGG GAGAATTAGA TCGCGATGGG
0841 AAAAAATTCG GTTAAGGCCA GGGGGAAAGA AAAAATATAA ATTAAAACAT ATAGTATGGG
0901 CAAGCAGGGA GCTAGAACGA TTCGCAGTTA ATCCTGGCCT GTTAGAAACA TCAGAAGGCT
0961 GTAGACAAAT ACTGGGACAG CTACAACCAT CCCTTCAGAC AGGATCAGAA GAACTTAGAT
1021 CATTATATAA TACAGTAGCA ACCCTCTATT GTGTGCATCA AAGGATAGAG ATAAAAGACA
1081 CCAAGGAAGC TTTAGACAAG ATAGAGGAAG AGCAAAACAA AAGTAAGACC ACCGCACAGC
1141 AAGCGGCCGG CCGCTGATCT TCAGACCTGG AGGAGGAGAT ATGAGGGACA ATTGGAGAAG
1201 TGAATTATAT AAATATAAAG TAGTAAAAAT TGAACCATTA GGAGTAGCAC CCACCAAGGC
1261 AAAGAGAAGA GTGGTGCAGA GAGAAAAAAG AGCAGTGGGA ATAGGAGCTT TGTTCCTTGG
1321 GTTCTTGGGA GCAGCAGGAA GCACTATGGG CGCAGCGTCA ATGACGCTGA CGGTACAGGC
1381 CAGACAATTA TTGTCTGGTA TAGTGCAGCA GCAGAACAAT TTGCTGAGGG CTATTGAGGC
1441 GCAACAGCAT CTGTTGCAAC TCACAGTCTG GGGCATCAAG CAGCTCCAGG CAAGAATCCT
1501 GGCTGTGGAA AGATACCTAA AGGATCAACA GCTCCTGGGG ATTTGGGGTT GCTCTGGAAA
1561 ACTCATTTGC ACCACTGCTG TGCCTTGGAA TGCTAGTTGG AGTAATAAAT CTCTGGAACA
1621 GATTTGGAAT CACACGACCT GGATGGAGTG GGACAGAGAA ATTAACAATT ACACAAGCTT
1681 AATACACTCC TTAATTGAAG AATCGCAAAA CCAGCAAGAA AAGAATGAAC AAGAATTATT
1741 GGAATTAGAT AAATGGGCAA GTTTGTGGAA TTGGTTTAAC ATAACAAATT GGCTGTGGTA
1801 TATAAAATTA TTCATAATGA TAGTAGGAGG CTTGGTAGGT TTAAGAATAG TTTTTGCTGT
1861 ACTTTCTATA GTGAATAGAG TTAGGCAGGG ATATTCACCA TTATCGTTTC AGACCCACCT
1921 CCCAACCCCG AGGGGACCCG ACAGGCCCGA AGGAATAGAA GAAGAAGGTG GAGAGAGAGA
1981 CAGAGACAGA TCCATTCGAT TAGTGAACGG ATCTCGACGG TATCGCCTTT AAAAGAAAAG
2041 GGGGGATTGG GGGGTACAGT GCAGGGGAAA GAATAGTAGA CATAATAGCA ACAGACATAC
2101 AAACTAAAGA ATTACAAAAA CAAATTACAA AAATTCAAAA TTTTCGGGTT TATTACAGGG
2161 ACAGCAGAGA TCCAGTTTAT CGATGAGTAA TTCATACAAA AGGACTCGCC CCTGCCTTGG
2221 GGAATCCCAG GGACCGTCGT TAAACTCCCA CTAACGTAGA ACCCAGAGAT CGCTGCGTTC
2281 CCGCCCCCTC ACCCGCCCGC TCTCGTCATC ACTGAGGTGG AGAAGAGCAT GCGTGAGGCT
2341 CCGGTGCCCG TCAGTGGGCA GAGCGCACAT CGCCCACAGT CCCCGAGAAG TTGGGGGGAG
2401 GGGTCGGCAA TTGAACCGGT GCCTAGAGAA GGTGGCGCGG GGTAAACTGG GAAAGTGATG
2461 TCGTGTACTG GCTCCGCCTT TTTCCCGAGG GTGGGGGAGA ACCGTATATA AGTGCAGTAG
2521 TCGCCGTGAA CGTTCTTTTT CGCAACGGGT TTGCCGCCAG AACACAGGTA AGTGCCGTGT
2581 GTGGTTCCCG CGGGCCTGGC CTCTTTACGG GTTATGGCCC TTGCGTGCCT TGAATTACTT
2641 CCACGCCCCT GGCTGCAGTA CGTGATTCTT GATCCCGAGC TTCGGGTTGG AAGTGGGTGG
2701 GAGAGTTCGA GGCCTTGCGC TTAAGGAGCC CCTTCGCCTC GTGCTTGAGT TGAGGCCTGG
2761 CTTGGGCGCT GGGGCCGCCG CGTGCGAATC TGGTGGCACC TTCGCGCCTG TCTCGCTGCT
2821 TTCGATAAGT CTCTAGCCAT TTAAAATTTT TGATGACCTG CTGCGACGCT TTTTTTCTGG
2881 CAAGATAGTC TTGTAAATGC GGGCCAAGAT CTGCACACTG GTATTTCGGT TTTTGGGGCC
2941 GCGGGCGGCG ACGGGGCCCG TGCGTCCCAG CGCACATGTT CGGCGAGGCG GGGCCTGCGA
3001 GCGCGGCCAC CGAGAATCGG ACGGGGGTAG TCTCAAGCTG GCCGGCCTGC TCTGGTGCCT
3061 GGCCTCGCGC CGCCGTGTAT CGCCCCGCCC TGGGCGGCAA GGCTGGCCCG GTCGGCACCA
3121 GTTGCGTGAG CGGAAAGATG GCCGCTTCCC GGCCCTGCTG CAGGGAGCTC AAAATGGAGG
3181 ACGCGGCGCT CGGGAGAGCG GGCGGGTGAG TCACCCACAC AAAGGAAAAG GGCCTTTCCG
3241 TCCTCAGCCG TCGCTTCATG TGACTCCACG GAGTACCGGG CGCCGTCCAG GCACCTCGAT
3301 TAGTTCTCGA GCTTTTGGAG TACGTCGTCT TTAGGTTGGG GGGAGGGGTT TTATGCGATG
3361 GAGTTTCCCC ACACTGAGTG GGTGGAGACT GAAGTTAGGC CAGCTTGGCA CTTGATGTAA
3421 TTCTCCTTGG AATTTGCCCT TTTTGAGTTT GGATCTTGGT TCATTCTCAA GCCTCAGACA
3481 GTGGTTCAAA GTTTTTTTCT TCCATTTCAG GTGTCGTGAG GATCTATTTC CGGTGAATTC
3541 CTCGAGACTA GTTCTAGAGC GGCCGCGGAT CCCGCCCCTC TCCCTCCCCC CCCCCTAACG
3601 TTACTGGCCG AAGCCGCTTG GAATAAGGCC GGTGTGCGTT TGTCTATATG TTATTTTCCA
3661 CCATATTGCC GTCTTTTGGC AATGTGAGGG CCCGGAAACC TGGCCCTGTC TTCTTGACGA
3721 GCATTCCTAG GGGTCTTTCC CCTCTCGCCA AAGGAATGCA AGGTCTGTTG AATGTCGTGA
3781 AGGAAGCAGT TCCTCTGGAA GCTTCTTGAA GACAAACAAC GTCTGTAGCG ACCCTTTGCA
3841 GGCAGCGGAA CCCCCCACCT GGCGACAGGT GCCTCTGCGG CCAAAAGCCA CGTGTATAAG
3901 ATACACCTGC AAAGGCGGCA CAACCCCAGT GCCACGTTGT GAGTTGGATA GTTGTGGAAA
3961 GAGTCAAATG GCTCACCTCA AGCGTATTCA ACAAGGGGCT GAAGGATGCC CAGAAGGTAC
4021 CCCATTGTAT GGGATCTGAT CTGGGGCCTC GGTGCACATG CTTTACATGT GTTTAGTCGA
4081 GGTTAAAAAA CGTCTAGGCC CCCCGAACCA CGGGGACGTG GTTTTCCTTT GAAAAACACG
4141 ATGATAATAT GGCCCAGTCC AAGCACGGCC TGACCAAGGA GATGACCATG AAGTACCGCA
4201 TGGAGGGCTG CGTGGACGGC CACAAGTTCG TGATCACCGG CGAGGGCATC GGCTACCCCT
4261 TCAAGGGCAA GCAGGCCATC AACCTGTGCG TGGTGGAGGG CGGCCCCTTG CCCTTCGCCG
4321 AGGACATCTT GTCCGCCGCC TTCATGTACG GCAACCGCGT GTTCACCGAG TACCCCCAGG
4381 ACATCGTCGA CTACTTCAAG AACTCCTGCC CCGCCGGCTA CACCTGGGAC CGCTCCTTCC
4441 TGTTCGAGGA CGGCGCCGTG TGCATCTGCA ACGCCGACAT CACCGTGAGC GTGGAGGAGA
4501 ACTGCATGTA CCACGAGTCC AAGTTCTACG GCGTGAACTT CCCCGCCGAC GGCCCCGTGA
4561 TGAAGAAGAT GACCGACAAC TGGGAGCCCT CCTGCGAGAA GATCATCCCC GTGCCCAAGC
4621 AGGGCATCTT GAAGGGCGAC GTGAGCATGT ACCTGCTGCT GAAGGACGGT GGCCGCTTGC
4681 GCTGCCAGTT CGACACCGTG TACAAGGCCA AGTCCGTGCC CCGCAAGATG CCCGACTGGC
4741 ACTTCATCCA GCACAAGCTG ACCCGCGAGG ACCGCAGCGA CGCCAAGAAC CAGAAGTGGC
4801 ACCTGACCGA GCACGCCATC GCCTCCGGCT CCGCCTTGCC CTGAACGCGT CTGGAACAAT
4861 CAACCTCTGG ATTACAAAAT TTGTGAAAGA TTGACTGGTA TTCTTAACTA TGTTGCTCCT
4921 TTTACGCTAT GTGGATACGC TGCTTTAATG CCTTTGTATC ATGCTATTGC TTCCCGTATG
4981 GCTTTCATTT TCTCCTCCTT GTATAAATCC TGGTTGCTGT CTCTTTATGA GGAGTTGTGG
5041 CCCGTTGTCA GGCAACGTGG CGTGGTGTGC ACTGTGTTTG CTGACGCAAC CCCCACTGGT
5101 TGGGGCATTG CCACCACCTG TCAGCTCCTT TCCGGGACTT TCGCTTTCCC CCTCCCTATT
5161 GCCACGGCGG AACTCATCGC CGCCTGCCTT GCCCGCTGCT GGACAGGGGC TCGGCTGTTG
5221 GGCACTGACA ATTCCGTGGT GTTGTCGGGG AAGCTGACGT CCTTTCCATG GCTGCTCGCC
5281 TGTGTTGCCA CCTGGATTCT GCGCGGGACG TCCTTCTGCT ACGTCCCTTC GGCCCTCAAT
5341 CCAGCGGACC TTCCTTCCCG CGGCCTGCTG CCGGCTCTGC GGCCTCTTCC GCGTCTTCGC
5401 CTTCGCCCTC AGACGAGTCG GATCTCCCTT TGGGCCGCCT CCCCGCCTGG AATTAATTCT
5461 GCAGTCGAGA CCTAGAAAAA CATGGAGCAA TCACAAGTAG CAATACAGCA GCTACCAATG
5521 CTGATTGTGC CTGGCTAGAA GCACAAGAGG AGGAGGAGGT GGGTTTTCCA GTCACACCTC
5581 AGGTACCTTT AAGACCAATG ACTTACAAGG CAGCTGTAGA TCTTAGCCAC TTTTTAAAAG
5641 AAAAGAGGGG ACTGGAAGGG CTAATTCACT CCCAACGAAG ACAAGATATC CTTGATCTGT
5701 GGATCTACCA CACACAAGGC TACTTCCCTG ATTAGCAGAA CTACACACCA GGGCCAGGGG
5761 TCAGATATCC ACTGACCTTT GGATGGTGCT ACAAGCTAGT ACCAGTTGAG CCAGATAAGG
5821 TAGAAGAGGC CAATAAAGGA GAGAACACCA GCTTGTTACA CCCTGTGAGC CTGCATGGGA
5881 TGGATGACCC GGAGAGAGAA GTGTTAGAGT GGAGGTTTGA CAGCCGCCTA GCATTTCATC
5941 ACGTGGCCCG AGAGCTGCAT CCGGAGTACT TCAAGAACTG CTGATATCGA GCTTGCTACA
6001 AGGGACTTTC CGCTGGGGAC TTTCCAGGGA GGCGTGGCCT GGGCGGGACT GGGGAGTGGC
6061 GAGCCCTCAG ATCCTGCATA TAAGCAGCTG CTTTTTGCCT GTACTGGGTC TCTCTGGTTA
6121 GACCAGATCT GAGCCTGGGA GCTCTCTGGC TAACTAGGGA ACCCACTGCT TAAGCCTCAA
6181 TAAAGCTTGC CTTGAGTGCT TCAAGTAGTG TGTGCCCGTC TGTTGTGTGA CTCTGGTAAC
6241 TAGAGATCCC TCAGACCCTT TTAGTCAGTG TGGAAAATCT CTAGCAGTAG TAGTTCATGT
6301 CATCTTATTA TTCAGTATTT ATAACTTGCA AAGAAATGAA TATCAGAGAG TGAGAGGCCT
6361 TGACATTGCT AGCGTTTACC GTCGACCTCT AGCTAGAGCT TGGCGTAATC ATGGTCATAG
6421 CTGTTTCCTG TGTGAAATTG TTATCCGCTC ACAATTCCAC ACAACATACG AGCCGGAAGC
6481 ATAAAGTGTA AAGCCTGGGG TGCCTAATGA GTGAGCTAAC TCACATTAAT TGCGTTGCGC
6541 TCACTGCCCG CTTTCCAGTC GGGAAACCTG TCGTGCCAGC TGCATTAATG AATCGGCCAA
6601 CGCGCGGGGA GAGGCGGTTT GCGTATTGGG CGCTCTTCCG CTTCCTCGCT CACTGACTCG
6661 CTGCGCTCGG TCGTTCGGCT GCGGCGAGCG GTATCAGCTC ACTCAAAGGC GGTAATACGG
6721 TTATCCACAG AATCAGGGGA TAACGCAGGA AAGAACATGT GAGCAAAAGG CCAGCAAAAG
6781 GCCAGGAACC GTAAAAAGGC CGCGTTGCTG GCGTTTTTCC ATAGGCTCCG CCCCCCTGAC
6841 GAGCATCACA AAAATCGACG CTCAAGTCAG AGGTGGCGAA ACCCGACAGG ACTATAAAGA
6901 TACCAGGCGT TTCCCCCTGG AAGCTCCCTC GTGCGCTCTC CTGTTCCGAC CCTGCCGCTT
6961 ACCGGATACC TGTCCGCCTT TCTCCCTTCG GGAAGCGTGG CGCTTTCTCA TAGCTCACGC
7021 TGTAGGTATC TCAGTTCGGT GTAGGTCGTT CGCTCCAAGC TGGGCTGTGT GCACGAACCC
7081 CCCGTTCAGC CCGACCGCTG CGCCTTATCC GGTAACTATC GTCTTGAGTC CAACCCGGTA
7141 AGACACGACT TATCGCCACT GGCAGCAGCC ACTGGTAACA GGATTAGCAG AGCGAGGTAT
7201 GTAGGCGGTG CTACAGAGTT CTTGAAGTGG TGGCCTAACT ACGGCTACAC TAGAAGAACA
7261 GTATTTGGTA TCTGCGCTCT GCTGAAGCCA GTTACCTTCG GAAAAAGAGT TGGTAGCTCT
7321 TGATCCGGCA AACAAACCAC CGCTGGTAGC GGTGGTTTTT TTGTTTGCAA GCAGCAGATT
7381 ACGCGCAGAA AAAAAGGATC TCAAGAAGAT CCTTTGATCT TTTCTACGGG GTCTGACGCT
7441 CAGTGGAACG AAAACTCACG TTAAGGGATT TTGGTCATGA GATTATCAAA AAGGATCTTC
7501 ACCTAGATCC TTTTAAATTA AAAATGAAGT TTTAAATCAA TCTAAAGTAT ATATGAGTAA
7561 ACTTGGTCTG ACAGTTACCA ATGCTTAATC AGTGAGGCAC CTATCTCAGC GATCTGTCTA
7621 TTTCGTTCAT CCATAGTTGC CTGACTCCCC GTCGTGTAGA TAACTACGAT ACGGGAGGGC
7681 TTACCATCTG GCCCCAGTGC TGCAATGATA CCGCGAGACC CACGCTCACC GGCTCCAGAT
7741 TTATCAGCAA TAAACCAGCC AGCCGGAAGG GCCGAGCGCA GAAGTGGTCC TGCAACTTTA
7801 TCCGCCTCCA TCCAGTCTAT TAATTGTTGC CGGGAAGCTA GAGTAAGTAG TTCGCCAGTT
7861 AATAGTTTGC GCAACGTTGT TGCCATTGCT ACAGGCATCG TGGTGTCACG CTCGTCGTTT
7921 GGTATGGCTT CATTCAGCTC CGGTTCCCAA CGATCAAGGC GAGTTACATG ATCCCCCATG
7981 TTGTGCAAAA AAGCGGTTAG CTCCTTCGGT CCTCCGATCG TTGTCAGAAG TAAGTTGGCC
8041 GCAGTGTTAT CACTCATGGT TATGGCAGCA CTGCATAATT CTCTTACTGT CATGCCATCC
8101 GTAAGATGCT TTTCTGTGAC TGGTGAGTAC TCAACCAAGT CATTCTGAGA ATAGTGTATG
8161 CGGCGACCGA GTTGCTCTTG CCCGGCGTCA ATACGGGATA ATACCGCGCC ACATAGCAGA
8221 ACTTTAAAAG TGCTCATCAT TGGAAAACGT TCTTCGGGGC GAAAACTCTC AAGGATCTTA
8281 CCGCTGTTGA GATCCAGTTC GATGTAACCC ACTCGTGCAC CCAACTGATC TTCAGCATCT
8341 TTTACTTTCA CCAGCGTTTC TGGGTGAGCA AAAACAGGAA GGCAAAATGC CGCAAAAAAG
8401 GGAATAAGGG CGACACGGAA ATGTTGAATA CTCATACTCT TCCTTTTTCA ATATTATTGA
8461 AGCATTTATC AGGGTTATTG TCTCATGAGC GGATACATAT TTGAATGTAT TTAGAAAAAT
8521 AAACAAATAG GGGTTCCGCG CACATTTCCC CGAAAAGTGC CACCTGACGT CGACGGATCG
8581 GGAGATCAAC TTGTTTATTG CAGCTTATAA TGGTTACAAA TAAAGCAATA GCATCACAAA
8641 TTTCACAAAT AAAGCATTTT TTTCACTGCA TTCTAGTTGT GGTTTGTCCA AACTCATCAA
8701 TGTATCTTAT CATGTCTGGA TCAACTGGAT AACTCAAGCT AACCAAAATC ATCCCAAACT
8761 TCCCACCCCA TACCCTATTA CCACTGCCAA TTACCTGTGG TTTCATTTAC TCTAAACCTG
8821 TGATTCCTCT GAATTATTTT CATTTTAAAG AAATTGTATT TGTTAAATAT GTACTACAAA
8881 CTTAGTAGT
