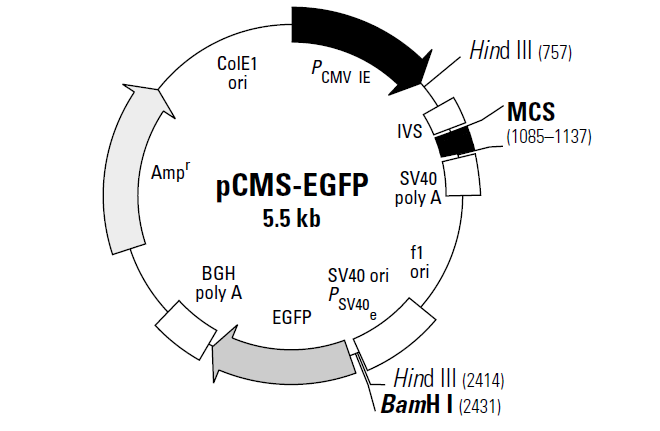

pCMS-EGFP is a mammalian expression vector that allows you to express your gene of interest at high levels by cloning it into a multiple cloning site (MCS) downstream of the immediate early promoter of cytomegalovirus (PCMV IE). The intervening sequence (IVS) between PCMV IE and the MCS is an intron that is efficiently spliced out following transcription. SV40 polyadenylation signals downstream of the MCS direct proper processing of the 3' end of the mRNA from your gene of interest. Bacteriophage T7 and T3 promoters are located upstream and downstream of the MCS, respectively.

pCMS-EGFP uses the enhanced green flourescent protein (EGFP) as a transformation marker. EGFP is a red-shifted variant of wild-type GFP from Aquorea victoria (1–3). EGFP has been optimized for brighter fluorescence and higher expression in mammalian cells. (Excitation maximum = 488 nm; emission maximum = 507 nm.) EGFP encodes the GFPmut1 variant (4) which contains the double-amino-acid substitution of Phe-64 to Leu and Ser-65 to Thr. The coding sequence of the EGFP gene contains more than 190 silent base changes which correspond to human codon-usage preferences (5). Sequences flanking EGFP have been converted to a Kozak consensus translation initiation site (6) to further increase the translation efficiency in eukaryotic cells. EGFP is expressed from the SV40 enhancer/promoter, and a polyadenylation signal from the bovine growth hormone (BGH) gene directs proper processing of the 3' end of the EGFP mRNA. The SV40 origin also allows for replication in mammalian cells expressing the SV40 T antigen.The vector backbone also contains the β-lactamase gene for ampicillin resistance and a ColE1 origin of replication for propagation in E. coli and an f1 origin for single-stranded DNA production.

The name of the vector comes from the order of four critical elements: the CMV IE promoter; the MCS; the SV40 promoter; and EGFP.

載體應(yīng)用

Genes cloned into the MCS must contain an ATG start codon. pCMS-EGFP and derivatives can be introduced into mammalian cells by any standard method. Transfected cells can be monitored and/or selected by flow cytometry based on the fluorescence of EGFP. Sense or antisense RNA can be transcribed from the T7 and T3 promoters, respectively.

0001 TCAATATTGG CCATTAGCCA TATTATTCAT TGGTTATATA GCATAAATCA ATATTGGCTA
0061 TTGGCCATTG CATACGTTGT ATCTATATCA TAATATGTAC ATTTATATTG GCTCATGTCC
0121 AATATGACCG CCATGTTGGC ATTGATTATT GACTAGTTAT TAATAGTAAT CAATTACGGG
0181 GTCATTAGTT CATAGCCCAT ATATGGAGTT CCGCGTTACA TAACTTACGG TAAATGGCCC
0241 GCCTGGCTGA CCGCCCAACG ACCCCCGCCC ATTGACGTCA ATAATGACGT ATGTTCCCAT
0301 AGTAACGCCA ATAGGGACTT TCCATTGACG TCAATGGGTG GAGTATTTAC GGTAAACTGC
0361 CCACTTGGCA GTACATCAAG TGTATCATAT GCCAAGTCCG CCCCCTATTG ACGTCAATGA
0421 CGGTAAATGG CCCGCCTGGC ATTATGCCCA GTACATGACC TTACGGGACT TTCCTACTTG
0481 GCAGTACATC TACGTATTAG TCATCGCTAT TACCATGGTG ATGCGGTTTT GGCAGTACAC
0541 CAATGGGCGT GGATAGCGGT TTGACTCACG GGGATTTCCA AGTCTCCACC CCATTGACGT
0601 CAATGGGAGT TTGTTTTGGC ACCAAAATCA ACGGGACTTT CCAAAATGTC GTAACAACTG
0661 CGATCGCCCG CCCCGTTGAC GCAAATGGGC GGTAGGCGTG TACGGTGGGA GGTCTATATA
0721 AGCAGAGCTC GTTTAGTGAA CCGTCAGATC ACTAGAAGCT TTATTGCGGT AGTTTATCAC
0781 AGTTAAATTG CTAACGCAGT CAGTGCTTCT GACACAACAG TCTCGAACTT AAGCTGCAGT
0841 GACTCTCTTA AGGTAGCCTT GCAGAAGTTG GTCGTGAGGC ACTGGGCAGG TAAGTATCAA
0901 GGTTACAAGA CAGGTTTAAG GAGACCAATA GAAACTGGGC TTGTCGAGAC AGAGAAGACT
0961 CTTGCGTTTC TGATAGGCAC CTATTGGTCT TACTGACATC CACTTTGCCT TTCTCTCCAC
1021 AGGTGTCCAC TCCCAGTTCA ATTACAGCTC TTAAGGCTAG AGTACTTAAT ACGACTCACT
1081 ATAGGCTAGC CTCGAGAATT CACGCGTGGT ACCTCTAGAG TCGACCCGGG CGGCCGCTTC
1141 CCTTTAGTGA GGGTTAATGC TTCGCAGACA TGATAAGATA CATTGATGAG TTTGGACAAA
1201 CCACAACTAG AATGCAGTGA AAAAAATGCT TTATTTGTGA AATTTGTGAT GCTATTGCTT
1261 TATTTGTAAC CATTATAAGC TGCAATAAAC AAGTTAACAA CAACAATTGC ATTCATTTTA
1321 TGTTTCAGGT TCAGGGGGAG ATGTGGGAGG TTTTTTAAAG CAAGTAAAAC CTCTACAAAT
1381 GTGGTAAAAT CCGATAAGGA TCGATCCGGG CTGGCGTAAT AGCGAAGAGG CCCGCACCGA
1441 TCGCCCTTCC CAACAGTTGC GCAGCCTGAA TGGCGAATGG ACGCGCCCTG TAGCGGCGCA
1501 TTAAGCGCGG CGGGTGTGGT GGTTACGCGC AGCGTGACCG CTACACTTGC CAGCGCCCTA
1561 GCGCCCGCTC CTTTCGCTTT CTTCCCTTCC TTTCTCGCCA CGTTCGCCGG CTTTCCCCGT
1621 CAAGCTCTAA ATCGGGGGCT CCCTTTAGGG TTCCGATTTA GAGCTTTACG GCACCTCGAC
1681 CGCAAAAAAC TTGATTTGGG TGATGGTTCA CGTAGTGGGC CATCGCCCTG ATAGACGGTT
1741 TTTCGCCCTT TGACGTTGGA GTCCACGTTC TTTAATAGTG GACTCTTGTT CCAAACTGGA
1801 ACAACACTCA ACCCTATCTC GGTCTATTCT TTTGATTTAT AAGGGATTTT GCCGATTTCG
1861 GCCTATTGGT TAAAAAATGA GCTGATTTAA CAAATATTTA ACGCGAATTT TAACAAAATA
1921 TTAACGTTTA CAATTTCGCC TGATGCGGTA TTTTCTCCTT ACGCATCTGT GCGGTATTTC
1981 ACACCGCATA CGCGGATCTG CGCAGCACCA TGGCCTGAAA TAACCTCTGA AAGAGGAACT
2041 TGGTTAGGTA CCTTCTGAGG CGGAAAGAAC CAGCTGTGGA ATGTGTGTCA GTTAGGGTGT
2101 GGAAAGTCCC CAGGCTCCCC AGCAGGCAGA AGTATGCAAA GCATGCATCT CAATTAGTCA
2161 GCAACCAGGT GTGGAAAGTC CCCAGGCTCC CCAGCAGGCA GAAGTATGCA AAGCATGCAT
2221 CTCAATTAGT CAGCAACCAT AGTCCCGCCC CTAACTCCGC CCATCCCGCC CCTAACTCCG
2281 CCCAGTTCCG CCCATTCTCC GCCCCATGGC TGACTAATTT TTTTTATTTA TGCAGAGGCC
2341 GAGGCCGCCT CGGCCTCTGA GCTATTCCAG AAGTAGTGAG GAGGCTTTTT TGGAGGCCTA
2401 GGCTTTTGCA AAAAGCTTGC CACAACCCGG GATCCACCGG TCGCCACCAT GGTGAGCAAG
2461 GGCGAGGAGC TGTTCACCGG GGTGGTGCCC ATCCTGGTCG AGCTGGACGG CGACGTAAAC
2521 GGCCACAAGT TCAGCGTGTC CGGCGAGGGC GAGGGCGATG CCACCTACGG CAAGCTGACC
2581 CTGAAGTTCA TCTGCACCAC CGGCAAGCTG CCCGTGCCCT GGCCCACCCT CGTGACCACC
2641 CTGACCTACG GCGTGCAGTG CTTCAGCCGC TACCCCGACC ACATGAAGCA GCACGACTTC
2701 TTCAAGTCCG CCATGCCCGA AGGCTACGTC CAGGAGCGCA CCATCTTCTT CAAGGACGAC
2761 GGCAACTACA AGACCCGCGC CGAGGTGAAG TTCGAGGGCG ACACCCTGGT GAACCGCATC
2821 GAGCTGAAGG GCATCGACTT CAAGGAGGAC GGCAACATCC TGGGGCACAA GCTGGAGTAC
2881 AACTACAACA GCCACAACGT CTATATCATG GCCGACAAGC AGAAGAACGG CATCAAGGTG
2941 AACTTCAAGA TCCGCCACAA CATCGAGGAC GGCAGCGTGC AGCTCGCCGA CCACTACCAG
3001 CAGAACACCC CCATCGGCGA CGGCCCCGTG CTGCTGCCCG ACAACCACTA CCTGAGCACC
3061 CAGTCCGCCC TGAGCAAAGA CCCCAACGAG AAGCGCGATC ACATGGTCCT GCTGGAGTTC
3121 GTGACCGCCG CCGGGATCAC TCTCGGCATG GACGAGCTGT ACAAGTAAAG CGGCCCTAGA
3181 GCTCGCTGAT CAGCCTCGAC TGTGCCTTCT AGTTGCCAGC CATCTGTTGT TTGCCCCTCC
3241 CCCGTGCCTT CCTTGACCCT GGAAGGTGCC ACTCCCACTG TCCTTTCCTA ATAAAATGAG
3301 GAAATTGCAT CGCATTGTCT GAGTAGGTGT CATTCTATTC TGGGGGGTGG GGTGGGGCAG
3361 GACAGCAAGG GGGAGGATTG GGAAGACAAT AGCAGGCATG CTGGGGATGC GGTGGGCTCT
3421 ATGGCTTCTG AGGCGGAAAG AACCAGCTGG GGCAGATCCG CGTATGGTGC ACTCTCAGTA
3481 CAATCTGCTC TGATGCCGCA TAGTTAAGCC AGCCCCGACA CCCGCCAACA CCCGCTGACG
3541 CGCCCTGACG GGCTTGTCTG CTCCCGGCAT CCGCTTACAG ACAAGCTGTG ACCGTCTCCG
3601 GGAGCTGCAT GTGTCAGAGG TTTTCACCGT CATCACCGAA ACGCGCGAGA CGAAAGGGCC
3661 TCGTGATACG CCTATTTTTA TAGGTTAATG TCATGATAAT AATGGTTTCT TAGACGTCAG
3721 GTGGCACTTT TCGGGGAAAT GTGCGCGGAA CCCCTATTTG TTTATTTTTC TAAATACATT
3781 CAAATATGTA TCCGCTCATG AGACAATAAC CCTGATAAAT GCTTCAATAA TATTGAAAAA
3841 GGAAGAGTAT GAGTATTCAA CATTTCCGTG TCGCCCTTAT TCCCTTTTTT GCGGCATTTT
3901 GCCTTCCTGT TTTTGCTCAC CCAGAAACGC TGGTGAAAGT AAAAGATGCT GAAGATCAGT
3961 TGGGTGCACG AGTGGGTTAC ATCGAACTGG ATCTCAACAG CGGTAAGATC CTTGAGAGTT
4021 TTCGCCCCGA AGAACGTTTT CCAATGATGA GCACTTTTAA AGTTCTGCTA TGTGGCGCGG
4081 TATTATCCCG TATTGACGCC GGGCAAGAGC AACTCGGTCG CCGCATACAC TATTCTCAGA
4141 ATGACTTGGT TGAGTACTCA CCAGTCACAG AAAAGCATCT TACGGATGGC ATGACAGTAA
4201 GAGAATTATG CAGTGCTGCC ATAACCATGA GTGATAACAC TGCGGCCAAC TTACTTCTGA
4261 CAACGATCGG AGGACCGAAG GAGCTAACCG CTTTTTTGCA CAACATGGGG GATCATGTAA
4321 CTCGCCTTGA TCGTTGGGAA CCGGAGCTGA ATGAAGCCAT ACCAAACGAC GAGCGTGACA
4381 CCACGATGCC TGTAGCAATG GCAACAACGT TGCGCAAACT ATTAACTGGC GAACTACTTA
4441 CTCTAGCTTC CCGGCAACAA TTAATAGACT GGATGGAGGC GGATAAAGTT GCAGGACCAC
4501 TTCTGCGCTC GGCCCTTCCG GCTGGCTGGT TTATTGCTGA TAAATCTGGA GCCGGTGAGC
4561 GTGGGTCTCG CGGTATCATT GCAGCACTGG GGCCAGATGG TAAGCCCTCC CGTATCGTAG
4621 TTATCTACAC GACGGGGAGT CAGGCAACTA TGGATGAACG AAATAGACAG ATCGCTGAGA
4681 TAGGTGCCTC ACTGATTAAG CATTGGTAAC TGTCAGACCA AGTTTACTCA TATATACTTT
4741 AGATTGATTT AAAACTTCAT TTTTAATTTA AAAGGATCTA GGTGAAGATC CTTTTTGATA
4801 ATCTCATGAC CAAAATCCCT TAACGTGAGT TTTCGTTCCA CTGAGCGTCA GACCCCGTAG
4861 AAAAGATCAA AGGATCTTCT TGAGATCCTT TTTTTCTGCG CGTAATCTGC TGCTTGCAAA
4921 CAAAAAAACC ACCGCTACCA GCGGTGGTTT GTTTGCCGGA TCAAGAGCTA CCAACTCTTT
4981 TTCCGAAGGT AACTGGCTTC AGCAGAGCGC AGATACCAAA TACTGTCCTT CTAGTGTAGC
5041 CGTAGTTAGG CCACCACTTC AAGAACTCTG TAGCACCGCC TACATACCTC GCTCTGCTAA
5101 TCCTGTTACC AGTGGCTGCT GCCAGTGGCG ATAAGTCGTG TCTTACCGGG TTGGACTCAA
5161 GACGATAGTT ACCGGATAAG GCGCAGCGGT CGGGCTGAAC GGGGGGTTCG TGCACACAGC
5221 CCAGCTTGGA GCGAACGACC TACACCGAAC TGAGATACCT ACAGCGTGAG CTATGAGAAA
5281 GCGCCACGCT TCCCGAAGGG AGAAAGGCGG ACAGGTATCC GGTAAGCGGC AGGGTCGGAA
5341 CAGGAGAGCG CACGAGGGAG CTTCCAGGGG GAAACGCCTG GTATCTTTAT AGTCCTGTCG
5401 GGTTTCGCCA CCTCTGACTT GAGCGTCGAT TTTTGTGATG CTCGTCAGGG GGGCGGAGCC
5461 TATGGAAAAA CGCCAGCAAC GCGGCCTTTT TACGGTTCCT GGCCTTTTGC TGGCCTTTTG
5521 CTCACATGGC TCGACAGATC T
